DIN Carbon Steel Y Type Strainer Flange Filters for Industry

Contact Now* Send an Inquiry to this supplier.
Start Order * Name your price

Contact us

Wenzhou Kmo Fluid Equipment Co.,Ltd

Baoyi Industrial Zone, Dongou Street, Yongjia County, Wenzhou Zhejiang
Contact name
Miranda Chen

Quick Information

  • Brand Name: KMO
  • Place of Origin: China
  • Model Number : KSRY(D)14G
  • Function : Water Filter
  • Size : DN15-250
  • Nominal Pressure : 1
  • Connection : 0~10MPA
  • Certificate : flange
  • Design Standard : CE
  • Structure Standard : ISO 9001
  • Flange Standard : SH/T 3411

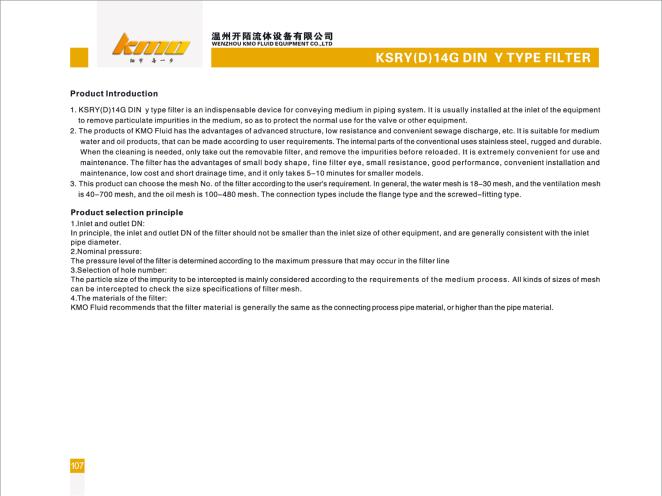

KSRY(D)14G DIN y type filter is an indispensable device for conveying medium in piping system. It is usually installed at the inlet of the equipment to remove particulate Impurities In the medium, so as to protect the normal use for the valve or other equipment. The internal parts of the conventional uses stainless steel, rugged and durable.  It is also easy to clean, user just need to take out the removable filter element and clean it.

1. Material: carbon steel, stainless steel, graphite (For more data, please refer to the disign parameters later)
2. Size: DN15-250
3. Applicable medium: water, oil, etc.
4. Filter accuracy: 40 meshes or according to customers requirement
5. Working Pressure: 1.0-10 MPa
6. Design temperature:-29ºC~ +350ºC
7. Connection: flange

8. Features: the body is anti-corrosive and durable. easy to use, installation, and maintenance.


Q: Are you manufacture or trading company?
A: We are manufacture and our factory is in in Oubei Town, Yongjia County, Wenzhou City, Zhejiang Province.

Q: What is your products' MOQ?
A: 10pcs.

Q: Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Q:If the product can be customized?
A: Yes, just let me know if you have any requirements, like applicable medium and size, etc.


  • CE : 8601513


  • Delivery Port : Ningbo Port

Packaging & Delivery

  • Packing :foam packing in carton inner
  • Packaging Size : 60 x 40 x 20  Centimeters
  • Package Weight : 5  Centigrams
  • Delivery Lead Time : 60 days for OEM, about 15 working days for ready goods
  • Supply Ability : 1000pcs per month
