WCB Y Strainer Pipeline Fitting Filtration Equipments Water Oil Filters

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Wenzhou Kmo Fluid Equipment Co.,Ltd
[China]

Address
Baoyi Industrial Zone, Dongou Street, Yongjia County, Wenzhou Zhejiang
Phone
86-21-18057776809
Contact name
Miranda Chen

Quick Information

  • Brand Name: KMO
  • Place of Origin: China
  • Model Number : KSRY14G-16C
  • Function : Water Filter
  • Material : WCB
  • Structure : Filtering Machine
  • Applicable Medium : water
  • Connection Type : oil
  • Sealing surface : Flange
  • Gasket : RF/ FF / FM / M
  • Wire mesh material : Graphite
  • Filter screen material : SUS304
  • Flange Hole Size Standard : SUS304
  • Design Standard : GB/T9119+Spiral groove
  • Structure&Length Standard : SH/T3411
  • Flange Standard : SH/T3411

Description

Product Introduction


    KSRY14G welded Y strainer is an indispensable device in the transportation pipeline system. It is usually installed at the inlet end of the equipment to filter the particulate impurities in the medium to, protecting the normal use of valves and other equipment. KMO's strainer has the characteristics of advanced structure, small resistance, and convenient drainage. The applicable medium for this product is water and oil. The filter can be made according to user requirements, and the internal parts are made of stainless steel, which is more durable. The connection form is divided into flange type and wire mouth type. The product has small size, fine filter eyes, good filtering effect, easy installation and maintenance, low cost, and short sewage discharge time.

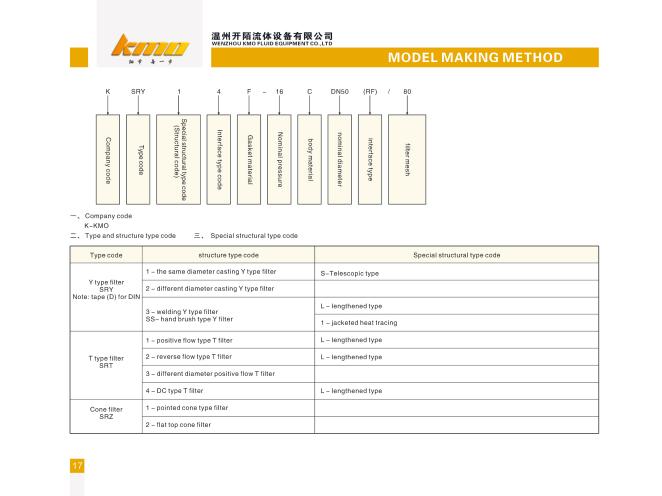

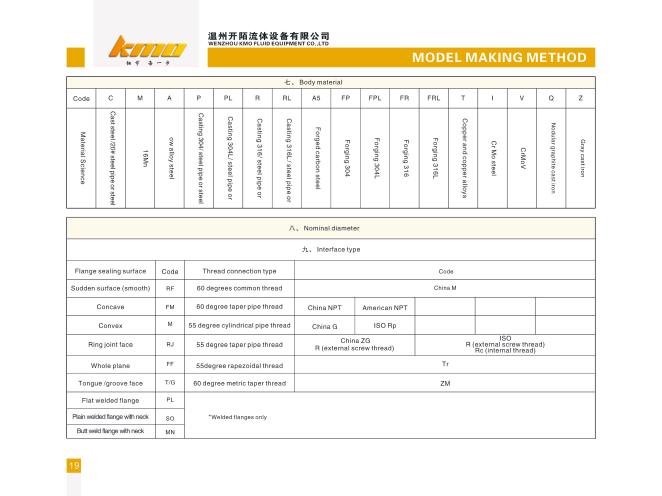

  • Body Material: WCB(more details please check the follow drawing)
  • Applicable medium: water, oil
  • Diameter: DN15-400mm
  • Nominal Pressure: 0.6-16MPa
  • Design temperature:-29ºC~ +350ºC
  • Connection type: flange
  • Filter meshes: 40 mesh or customer requirements
  • Design Standard: SH/T3411
  • Structure and flange standard: SH/T3411
  • Flange Standard: GB /JB / HG / DIN

Product Selection Principles

  1. Entry and exit path: in principle, the inlet and outlet diameter of the filter should be same as the inlet pipe diameter.
  2. Nominal pressure:the pressure level of the filter is according to the highest pressure that may appear in the filter line.
  3. The choice of the number of holes: mainly consider the particle size of impurities to be intercepted, which depends on the process requirements of the medium process. (check the filter specifications for the particle size that the net can intercept)
  4. Filter material: KMO recommends that the filter material is generally selected to be the same as the material of the connected process pipeline or the performance is higher than the pipeline material.


Notes for Installation

  1. The product can be installed horizontally or vertically. During installation, the medium flow direction must be consistent with the direction of the arrow marked on the casing.
  2. In order to maintain conveniently, it is recommended to install and use this product together with cut-off valves. Both upstream and downstream of this product should be installed with cut-off valves. When the product needs to be repaired, the upstream and downstream valves can be closed to cut off its connection with the system.
  3. It is best to install a differential pressure gauge upstream and downstream of the product. If there is a difference between the upstream and downstream pressure gauge readings, there is already impurities on the filter element. When there is media flowing through, the resistance will become larger, and the filter screen needs to be cleaned in time.
  4. In order to keep the system working normal when repairing the strainer, KMO recommends that it is best to install a bypass line at the same time as the installation. The shut-off valve is closing when the strainer is working well. But when it needs to maintenance, the shut-off valve should be opened.
  5. When installing this product, please pay attention to reserve a space for daily maintenance and repair.


Note for Maintenance
  1. KMO recommends that after using this product for a period of time, the internal filter should be removed to clean it, so as to prevent the filter from being blocked by impurities and affecting the normal use of the system. It is generally better to clean the filter every 3 months or so.
  2. After installing the cleaned filter back to the filter, pay attention to observe whether there is any water leakage in the filter gasket. If leakage is found, replace the gasket in time.
  3. After installing the product in the new system, the filter screen should be cleaned in time to prevent the construction waste remaining in the pipeline from installing the pipeline to block the product.



FAQ:

Q: Are you manufacture or trading company?
A: We are manufacture and our factory is in in Oubei Town, Yongjia County, Wenzhou City, Zhejiang Province.

Q: What is your products' MOQ?
A: 10pcs.

Q: Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.

Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.

Q:If the product can be customized?
A: Yes, just let me know if you have any requirements, like applicable medium and size, etc.


Certificates

  • CE : 8601513

Price

  • Delivery Port : Ningbo

Packaging & Delivery

  • Packing :foam packing in carton inner
  • Packaging Size : 60 x 40 x 20  Centimeters
  • Package Weight :
  • Delivery Lead Time : 60 days for OEM, about 15 working days for ready goods
  • Supply Ability : 100pcs per month

Product Image

  • WCB Y Strainer Pipeline Fitting Filtration Equipments Water Oil Filters image
